Euromac Digibend 800 CNC

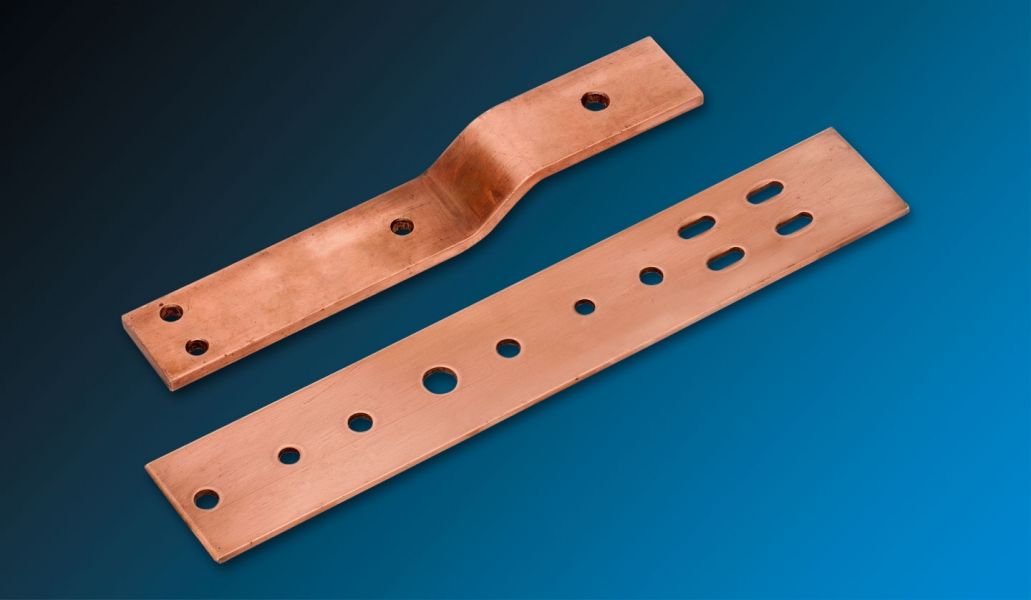

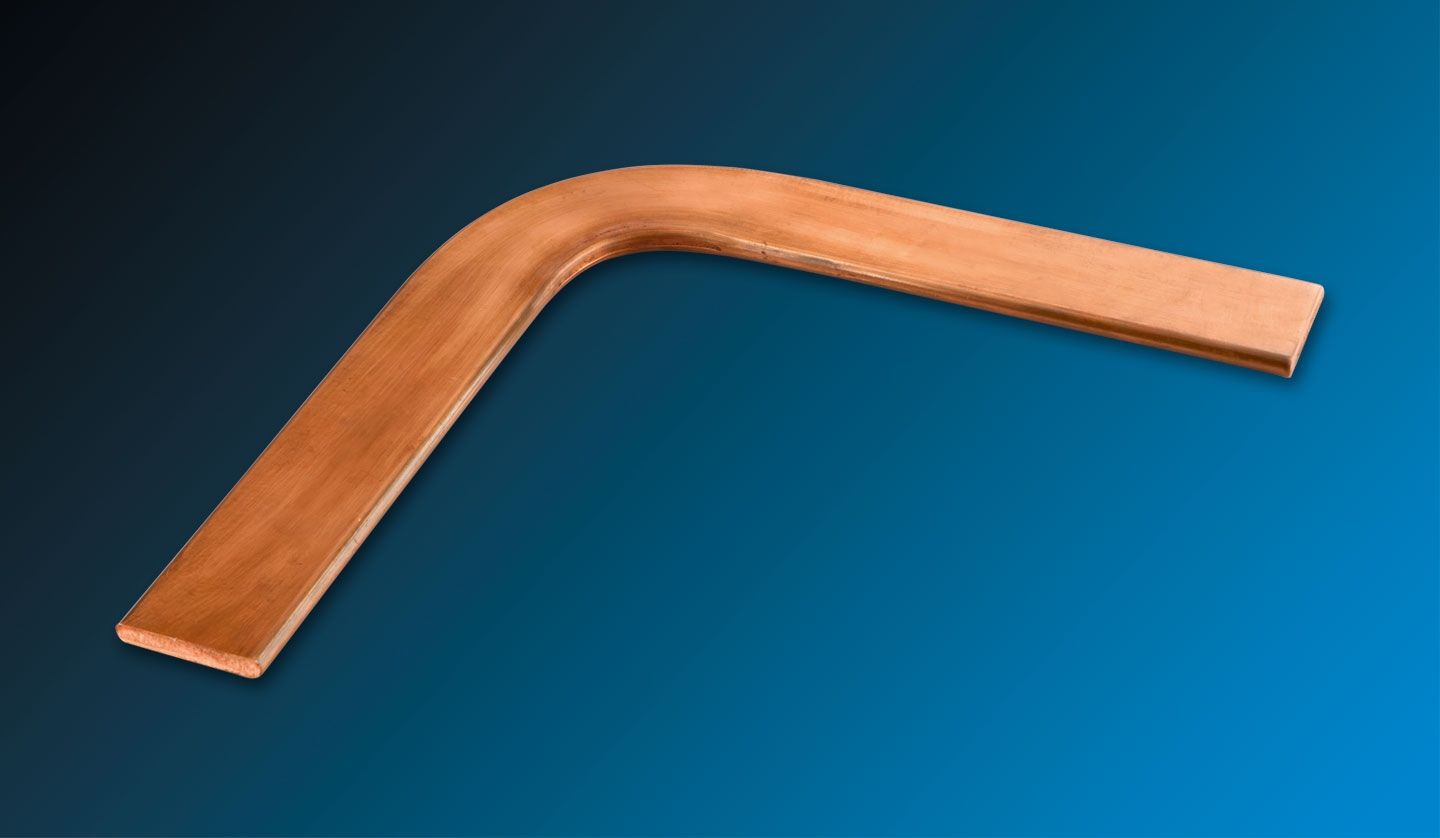

Are you using or considering using a conventional press brake to bend small pieces of thick material or copper? Then you should consider using Digibend: a powerful, versatile horizontal press brake.
With Euromac you get the maximum bending flexibility
The Digibend table is a machined out of a single monoblock of Meehanite® 700N/mm2 (no welding points), the cylinder is completely embraced in the structure and the RAM is guided in all its stroke in order to be able to maintain the highest accuracy even in the high tonnage demanding applications. The strong structure combined with the unique control system and the specifically designed hydraulics ensure the repeatability accuracy (0,05 mm) even after thousands of bends.
The flexible and strong design of the Digibend table (with antimarking treatment) together with the easy to use control system (2 axis CNC controlled) allows any customer to create their own custom tools for special applications.
The Digibend table is a machined out of a single monoblock of Meehanite® 700N/mm2 (no welding points), the cylinder is completely embraced in the structure and the RAM is guided in all its stroke in order to be able to maintain the highest accuracy even in the high tonnage demanding applications. The strong structure combined with the unique control system and the specifically designed hydraulics ensure the repeatability accuracy (0,05 mm) even after thousands of bends.
The flexible and strong design of the Digibend table (with antimarking treatment) together with the easy to use control system (2 axis CNC controlled) allows any customer to create their own custom tools for special applications.
| Max. pressure (kN) | 800 |
| Max. working speed (mm/sec) | 9.3 |
| Min. working speed (mm/sec) | 4.6 |
| Return speed (mm/sec) | 45 |
| Average working speed (mm/sec) | 27.2 |
| Storables programs | 255 |
| Sequence of storables programs | 50 + 5 (di punzonatura) |
| Number of bends for each sequence | 16 |
| Working table dimensions (mm) | 650 x 1565x925 (A) |
| Fixing holes in working table (nr. x 0 - mm) | 6x0 80 |
| Working height (mm) | 925 |
| Oil tank capacity (It.) | 60 |
| Motore HP - Kw | 5.5-4 |
| High bending (mm) | A=200 |
| Extra high bending (mm) | A=400 |
| Shearing max thickness | A=150 x 12 (spess.) |
| Punching max thickness | 0 3Ox 12 (spess.) |
| Straightening (H/thickness) | A=200 |
| Two-jaw-bending (mm) | 0 60 |
| Rotary bending (mm) | 0 50 |
| CNC automatic backguage (Length, mm) | 1250 / 2000 |
| Approx, weight (kg) | 1500 |
| Overall dimensions (L x 1 x h) | 750x 1565x 1200 |
| All application range indications are refered to steel material with 400N/mm2 resistance. | |
