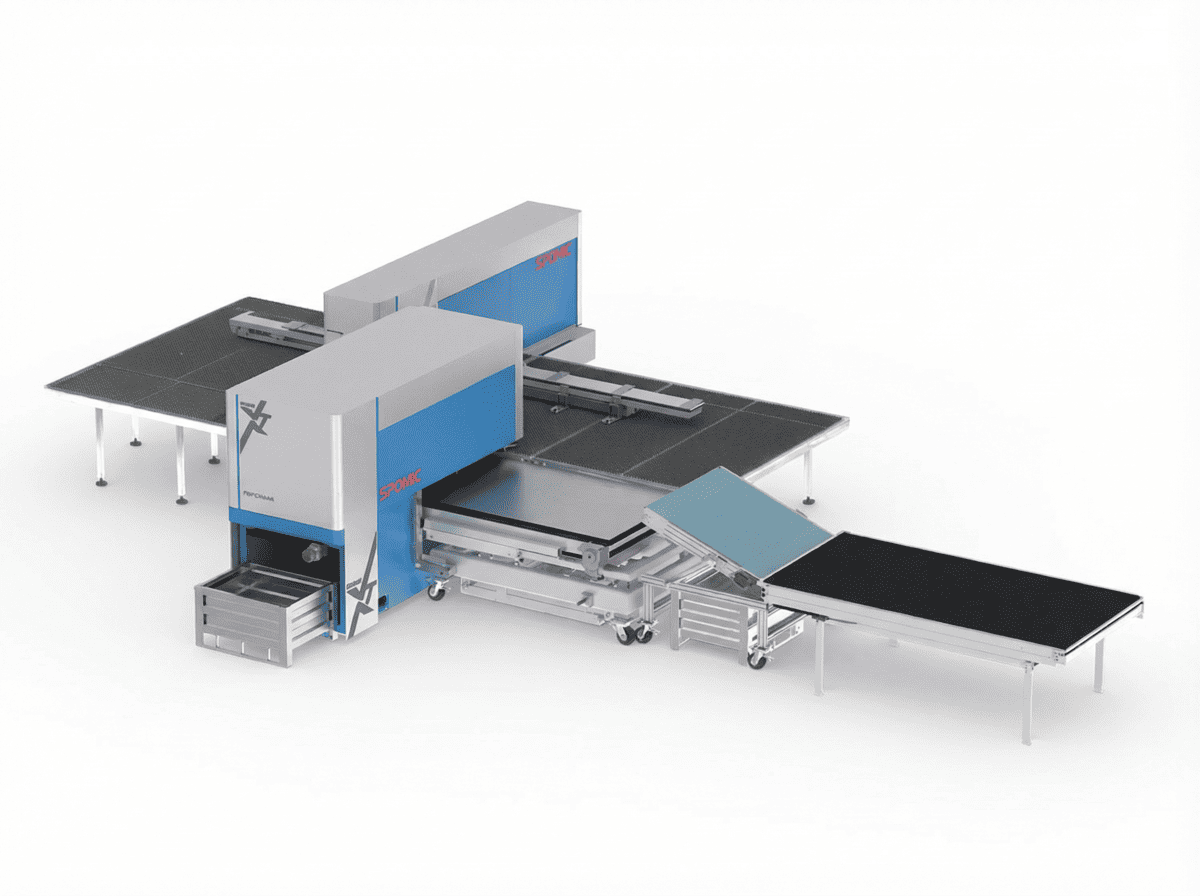

Euromac XT SHEAR Electric S 1500/24-2500
The compact electric machine is designed for fast punching and ultra-precise cutting of sheet metal without excessive noise and vibration.
Shear Xt — is an innovative solution for high-speed blanking and separation of sheet metal, combining functions of punching and precision cutting in one cycle. The system significantly optimizes production, ensuring the creation of finished parts in the shortest possible time with minimal operating costs.
Significant material savings
Technology reduces waste by an average of 15–20%, effectively making every fifth sheet free.
Ideal quality without rework
The equipment completely eliminates the need for micro-joints, ensuring perfectly clean edges of parts immediately after cutting.
High speed and accuracy
The cutting process takes mere seconds, providing ultra-high positioning accuracy of +/- 0.05 mm.
Full automation
The machines are designed to operate as part of fully autonomous production lines, performing punching, forming, and marking without operator intervention.
Energy efficiency
The Shear Xt system features reduced energy consumption compared to traditional blanking methods, reducing overall production costs.
Significant material savings
Technology reduces waste by an average of 15–20%, effectively making every fifth sheet free.
Ideal quality without rework
The equipment completely eliminates the need for micro-joints, ensuring perfectly clean edges of parts immediately after cutting.
High speed and accuracy
The cutting process takes mere seconds, providing ultra-high positioning accuracy of +/- 0.05 mm.
Full automation
The machines are designed to operate as part of fully autonomous production lines, performing punching, forming, and marking without operator intervention.
Energy efficiency
The Shear Xt system features reduced energy consumption compared to traditional blanking methods, reducing overall production costs.
| Max. punching force (kN) | 240 |
| Y-axis with Multi-tool/Monop. (mm) | 1550 / 1500 |
| Y-axis motors | 2 |
| X-axis (mm) | 2500 |
| Automatic repositioning in X (mm) | up to 10000 |
| Punch stroke control (mm) | from 0.1 to 31 |
| Servomotor-driven hydraulic system | standard |
| Positioning accuracy (mm) | +/- 0.05 |
| Repeatability in forming (mm) | +/- 0.1 |
| Bi-directional Auto-index Stations | 3 |
| Clamp aperture (mm) | 11 |
| Std. automatic clamps. | 2 |
| Max. number of strokes (1/min): | |
| Nibbling pitch 1 mm | 780 |
| Marking | 2000 |
| Thicknesses (mm) | 0.6 - 6.5 |
| Max. sheet metal weight at reduced axle speed (kg) | 180* |
| USB ports | 6 |
| Power required (kW) | 13 |
| Average power consumption (kW/h) | 3.5 |
| Approximate weight (kg) | 9100 |
| Dimensions (mm) | 5400 x 4600 |
Euromac — a recognized expert in developing technologies that take sheet metal processing optimization to a fundamentally new level. Following its mission to bring any partner's ambitions to life, the brand creates intelligent systems for full control and transparency of all production cycles. The entire journey from design to assembly takes place exclusively in Italy, allowing the company to combine benchmark reliability with innovations that open new opportunities for businesses worldwide.
