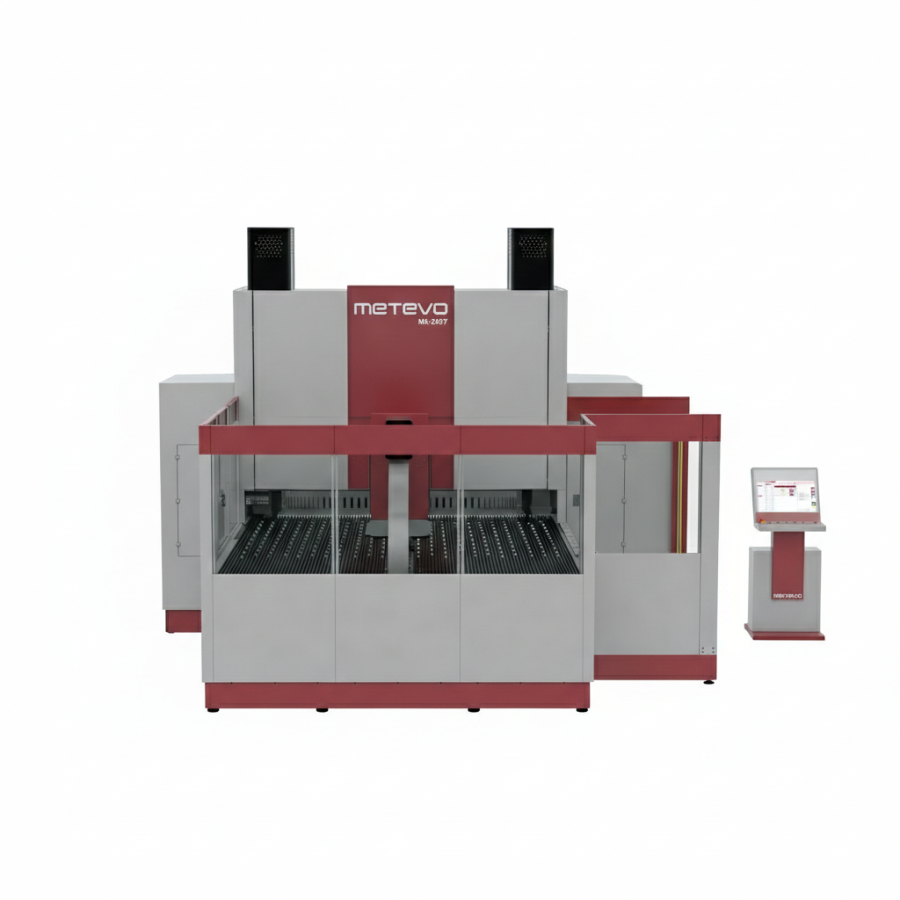

Metevo MX-2017
-
Flexible Automation: The machine efficiently processes parts up to 170 mm in height using universal tooling configured by the operator for specific tasks. This setup is ideal for repetitive production requiring high output speeds with moderate changeover costs.
-
Stable Technology: The use of servo-electric drive systems ensures high energy efficiency (average consumption of only 4 kW) and environmental friendliness. A robust mechanical base and high-quality tool processing guarantee the machine's durability even during intensive multi-shift operation.
-
Adaptive System: The software interface allows for easy adjustments to the bending program to compensate for material variations, eliminating scrap when working with structural steel. The control system is designed for simplicity, allowing operators of any experience level to achieve high-quality bends.
-
Connectivity 4.0: The machine software supports modern production preparation standards, while integration with digital support tools (such as ACTY) enables remote diagnostics. Local Salvagnini support ensures the equipment is integrated into the company’s production cycle with minimal effort.
| Parameter | Value |
| Max bending length | 2000 mm |
| Max diagonal that can be rotated | 2360 mm |
| Max bending height | 170 mm |
| Min thickness | 0.4 mm |
| Max thickness mild steel (UTS 410 N/mm²) | 2.0 |
| Max thickness stainless steel (UTS 515 N/mm²) | 1.5 |
| Max thickness aluminium (UTS 265 N/mm²) | 3.0 |
| Max inward bend on long side | 40 mm |
| Max inward bend on short side | 30 mm |
| Min blankholder step | 10 mm |
| Average power | 4 kW |
| Footprint | 15 m² |
| Weight | 22 ton |
Metevo is a brand owned by Salvagnini (Italy). It operates globally through the Salvagnini distribution network. Production of panel bender is based in China, while distribution is exclusively managed by Salvagnini. Each Salvagnini distribution company oversees commercial activities and provides local after-sales support through its own service organization. This ensures faster response times, local language assistance, and direct customer interaction across all supported regions.
